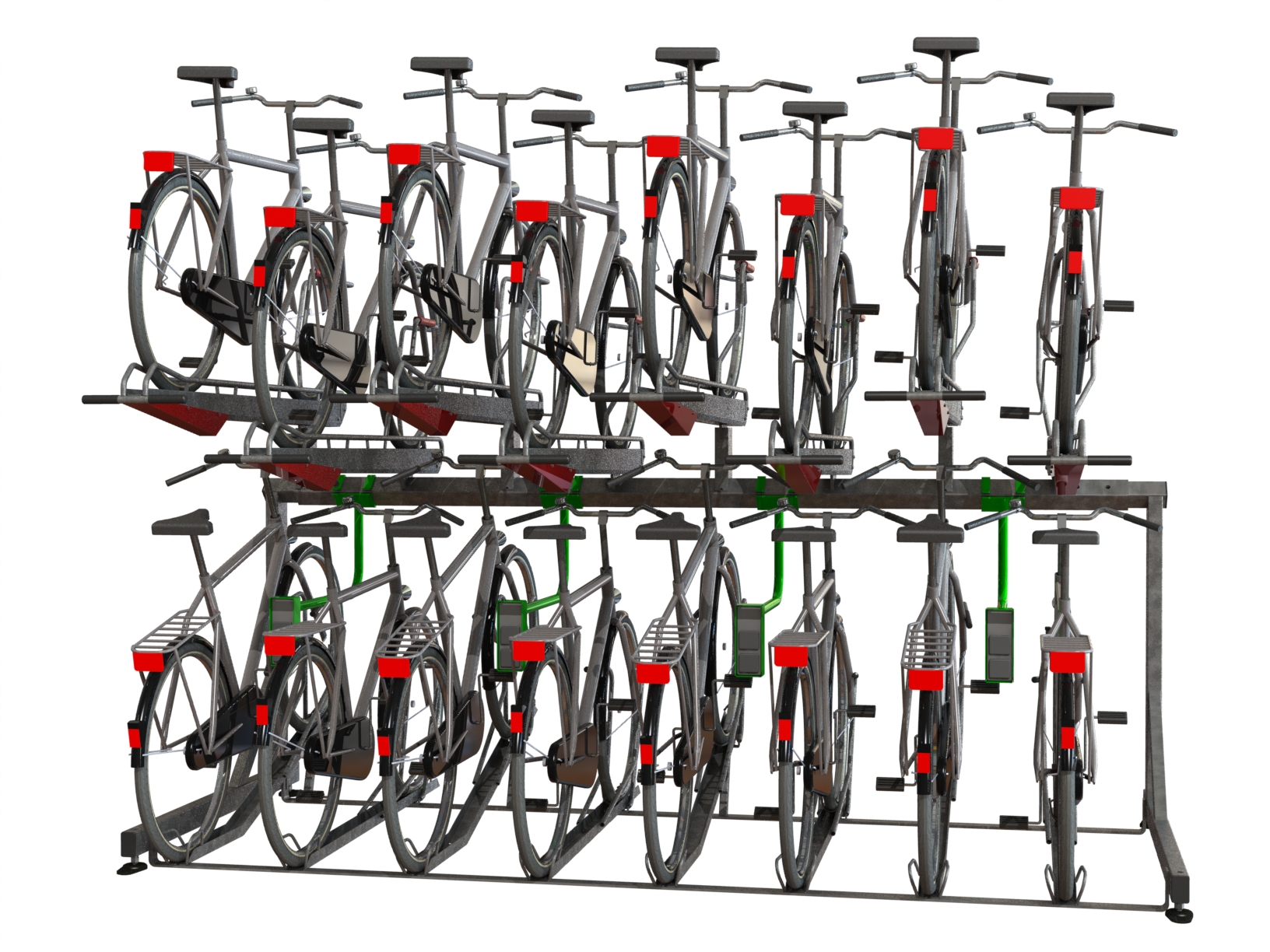

Double-layer bicycle racks for e-bikes

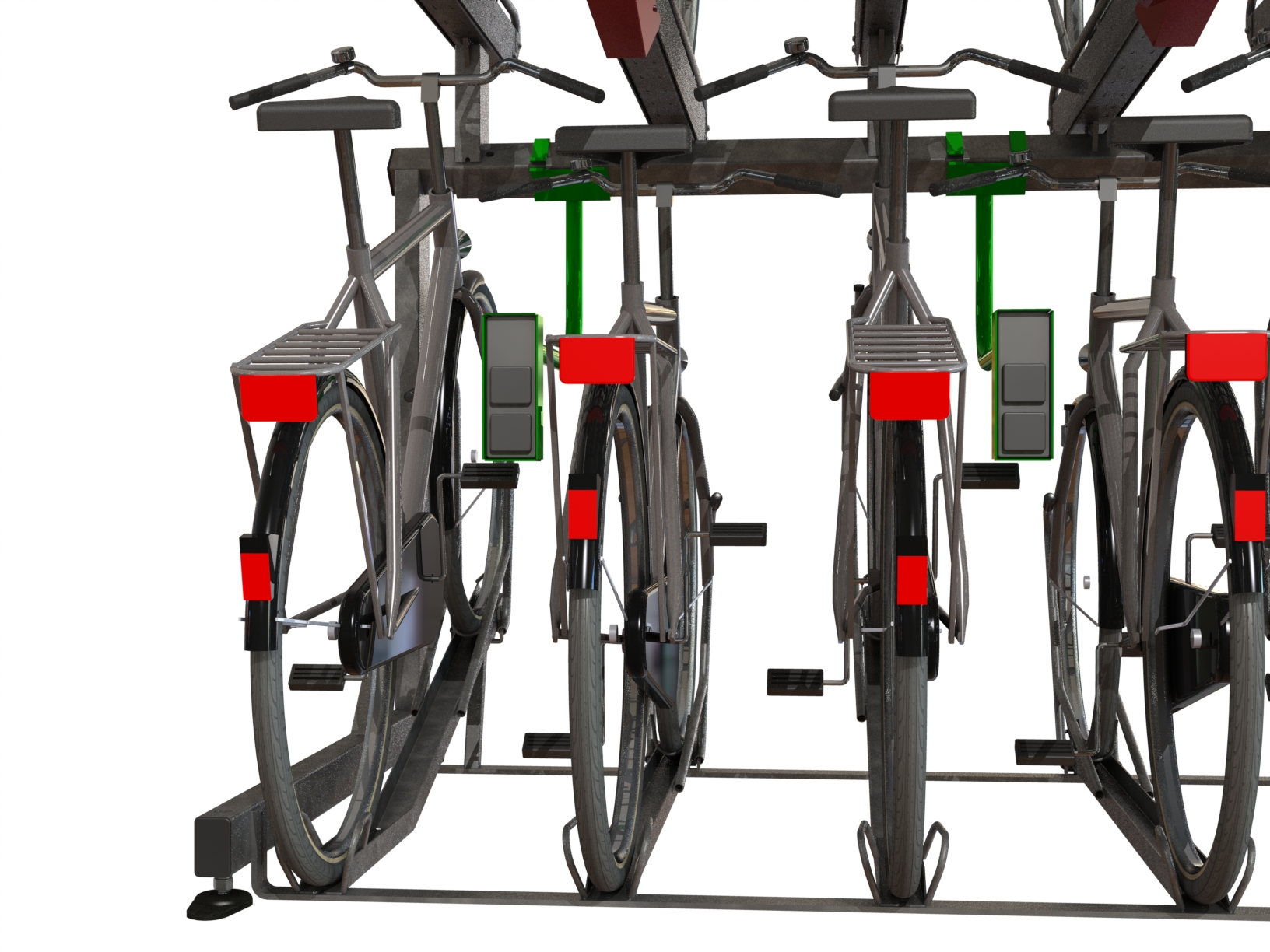

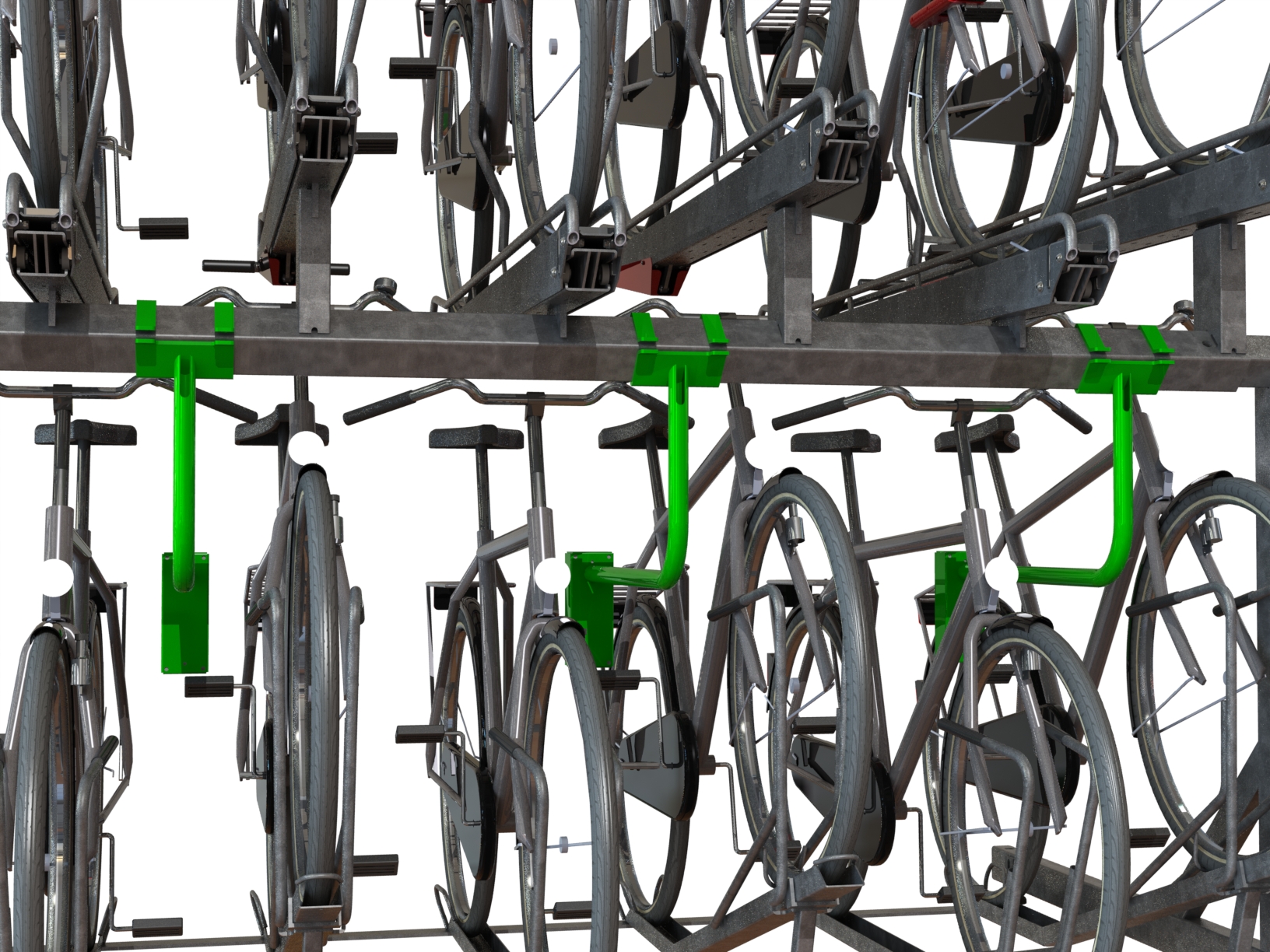

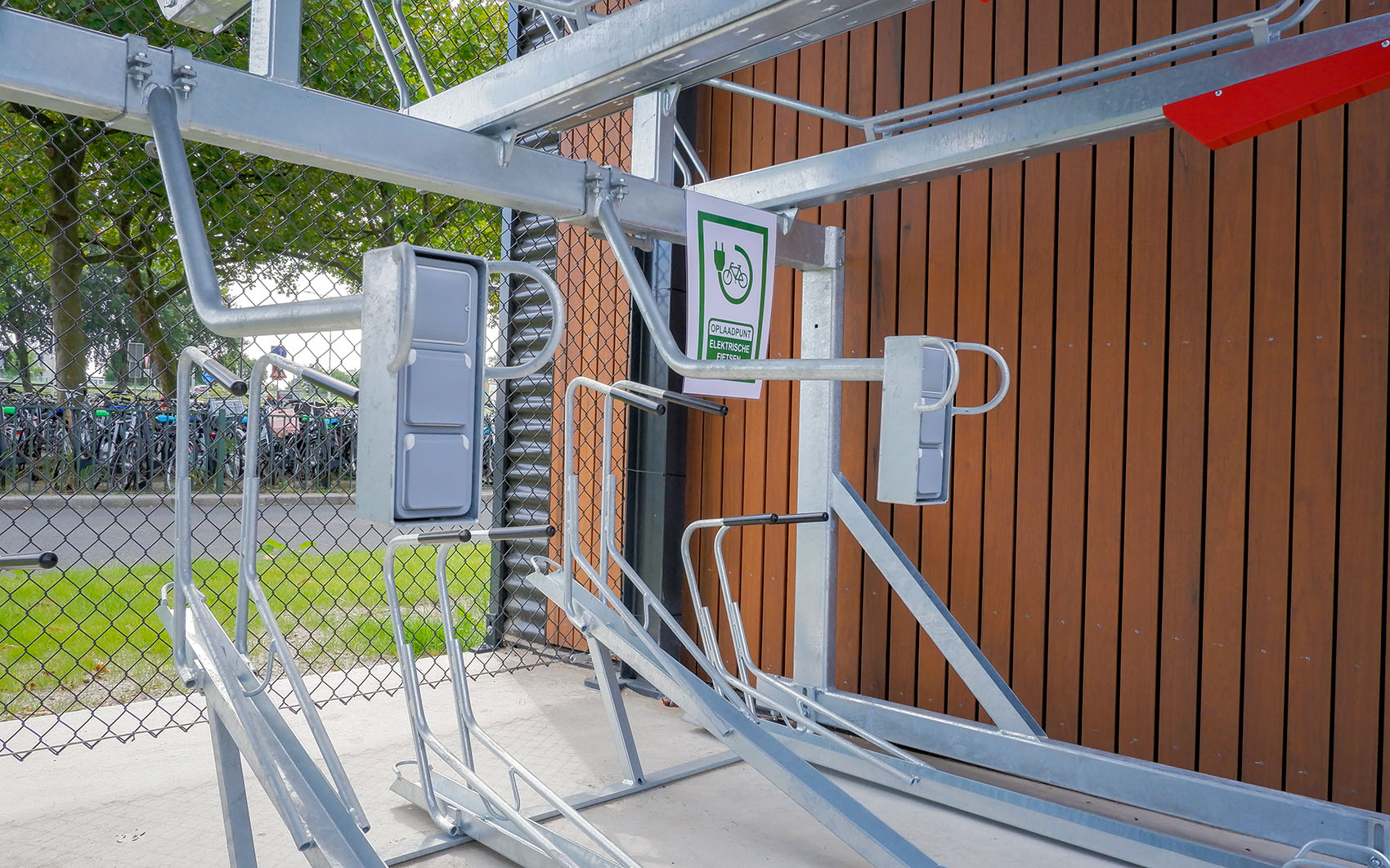

The double-layer bicycle rack with charging points for e-bikes is the most space-saving bicycle rack for e-bikes. One charging point offers the possibility to charge 2 bicycles.

Request a quote
Download productsheet

Double-layer bicycle racks for e-bikes

  • 2ParkUp
  • CycleUp

Safety

The floor systems of Klaver Bicycle Parking are in possession of the FietsParKeur certificate. This foundation distinguishes between the areas
where bicycles are parked. Is this a public space or a secure bicycle parking facility? The answer determines whether the bicycle racks are required to have a securing device. The multi-level systems are equipped with such a securing device as standard. In addition, all moving parts are concealed behind a protective cover. This prevents injury or damage.

Durable

The multi-level systems are made of very high-quality hot-dip galvanized steel, ensuring a long lifespan as a bicycle rack. Powder coating in all standard RAL colors is also an option. The double-layer bicycle racks have a modular design and are available in both single-sided and double-sided versions. This means that the bicycle racks can be expanded endlessly into modules. Additionally, there is a choice of different center-to-center distances. A center-to-center distance indicates the distance between the bicycle spaces. Klaver Fietsparkeren uses a minimum center-to-center distance of 37.5 cm for the double-layer bicycle rack.

Ways of support

Klaver Fietsparkeren offers two support options for the upper bays of the multi-level bicycle rack: front fork locking and rear wheel locking. With front fork locking, the bicycle is secured to the front fork using a hook. This ensures the bicycle remains stable in the rack. Another option is rear wheel locking, where the bicycle is supported at both the front and rear wheels.

The lower bays of the multi-level bicycle rack are equipped with front fork support as standard. With this type of support, the bicycle is supported at a strong component, the front fork. This prevents the wheel from becoming bent. Additionally, the wear-resistant protective sleeves prevent damage to the bicycle’s front fork.

User-friendly

To effortlessly park bicycles on the upper levels, the lifting weight of the top rail is reduced by an integrated gas spring. This, combined with the anti-rollback mechanism, makes the multi-level system a user-friendly bicycle parking system. Thanks to the anti-rollback mechanism on the upper levels, the bicycle automatically returns if it is pushed too far forward.
